Elvid FieldVision 4KV2 7" On-Camera Monitor with Full HD IPS Screen, 4K HDMI Support, Focus Peaking, Zebra Exposure, L-Series Battery Plate, Sun Hood and Mount

(0)REVIEW Add Your Review | Email a Friend Free Shipping in the Continental USA.
List Price : $189 You Save :$0 Unit Price : $189
5% OFF

Sitewide Use Coupon CodeSWS866

SKU : ELOCM7B4KV2 Availability : In stock
Product Summury
Model ELOCM7B4KV2
UPC 847628002920
Brand Angler
Weight 0.82 lbs
Height 0.7
Width 5.1
Condition New

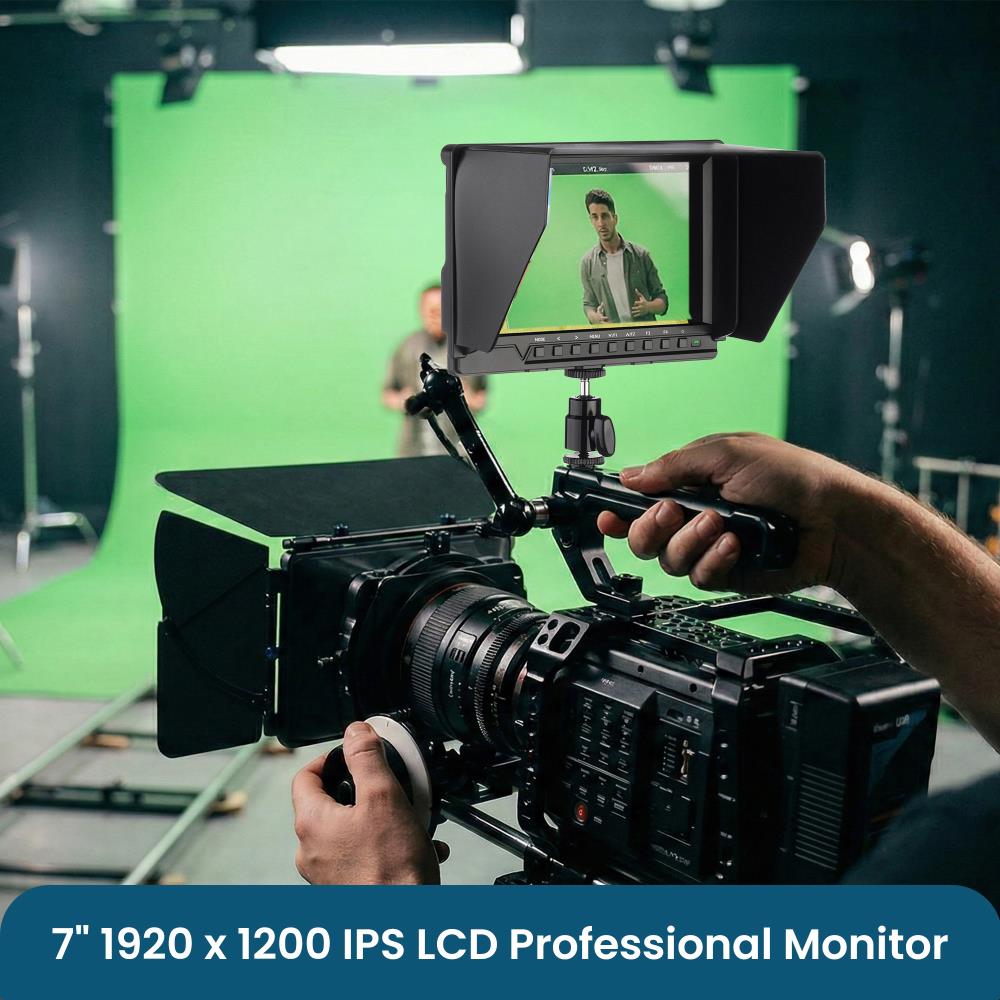

    The Elvid FieldVision 4KV2 7" On-Camera Monitor is made for DSLR, mirrorless, and cinema cameras with HDMI output. Its sharp 1920 x 1200 IPS screen gives a clear, detailed view with accurate color and wide 160° viewing angles, helping you check focus and framing with confidence, even when working with UHD and DCI 4K signals.

    For indoor and outdoor shooting, the monitor offers 450 cd/m² brightness and includes a sun hood to reduce glare in bright light. Built-in monitoring tools like focus peaking, zebras, and 1:1 pixel mapping make it easier to judge sharpness and exposure, while HDMI and composite inputs plus L-Series battery support add flexibility for different camera setups.

    Key Features

    • 7" 1920 x 1200 IPS LCD – High-resolution 7" IPS display for sharp detail, accurate color, and clear viewing from wide angles.
    • HDMI and Composite A/V Inputs – Full-size HDMI for modern cameras plus composite input support for compatible legacy sources.
    • Supports UHD and DCI 4K Resolutions – Accepts UHD and DCI 4K signals so you can monitor high-resolution video with confidence.
    • 450 cd/m² Brightness – Bright screen designed for indoor viewing, with sun hood included to help reduce outdoor glare.
    • 160° Viewing Angle – Wide viewing angles help maintain color and contrast when viewing from different positions.
    • Focus Peaking – Highlights in-focus areas to help you fine-tune sharpness quickly during shooting.
    • Zebra Exposure Guides – Zebra overlays help spot overexposed highlights so you can adjust exposure faster.
    • 1:1 Pixel Mapping – Pixel-to-pixel viewing helps check fine detail without scaling for more accurate focus checks.

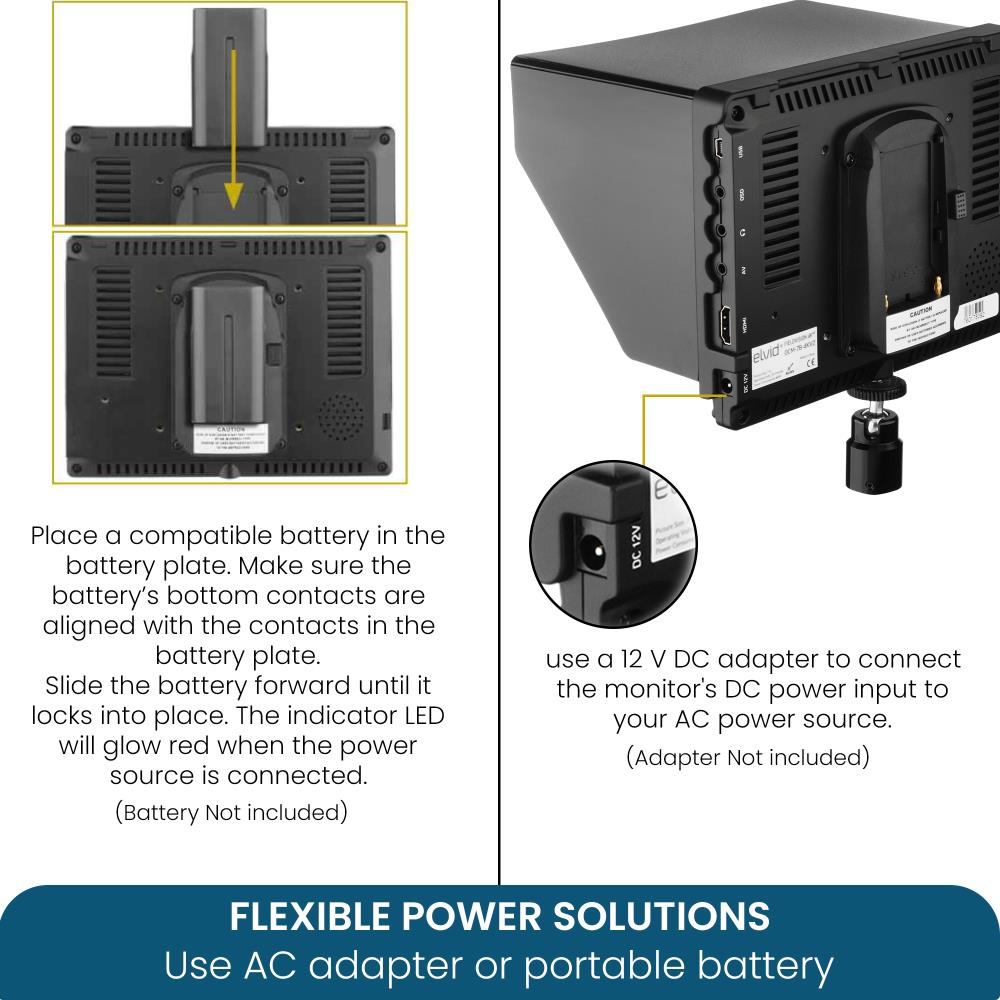

    • L-Series Battery Plate – Uses widely available L-Series batteries for convenient on-camera power options.

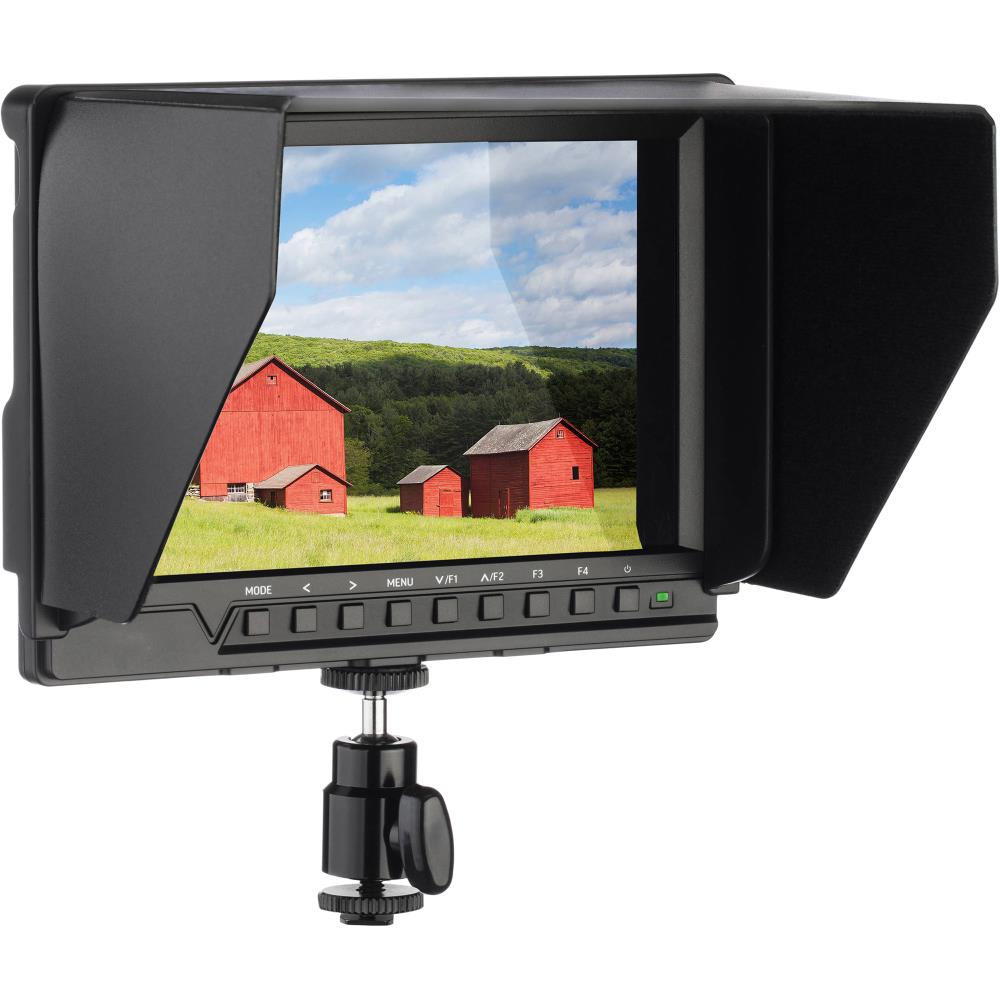

    • Includes Ball Shoe Mount and Sun Hood – Ball shoe mount for flexible positioning and a sun hood for clearer viewing outdoors.

    Specifications

    • Display Size (Diagonal) : 7.0"
    • Native Resolution : 1920 x 1200
    • Panel Type : IPS-Type LCD
    • Aspect Ratio : 16:10
    • Viewing Angle (Horizontal) : 160°
    • Viewing Angle (Vertical) : 160°
    • Touchscreen : No
    • Maximum Brightness : 450 cd/m²
    • Contrast Ratio : 1200:1
    • HDR Support : No
    • LUT Support : No

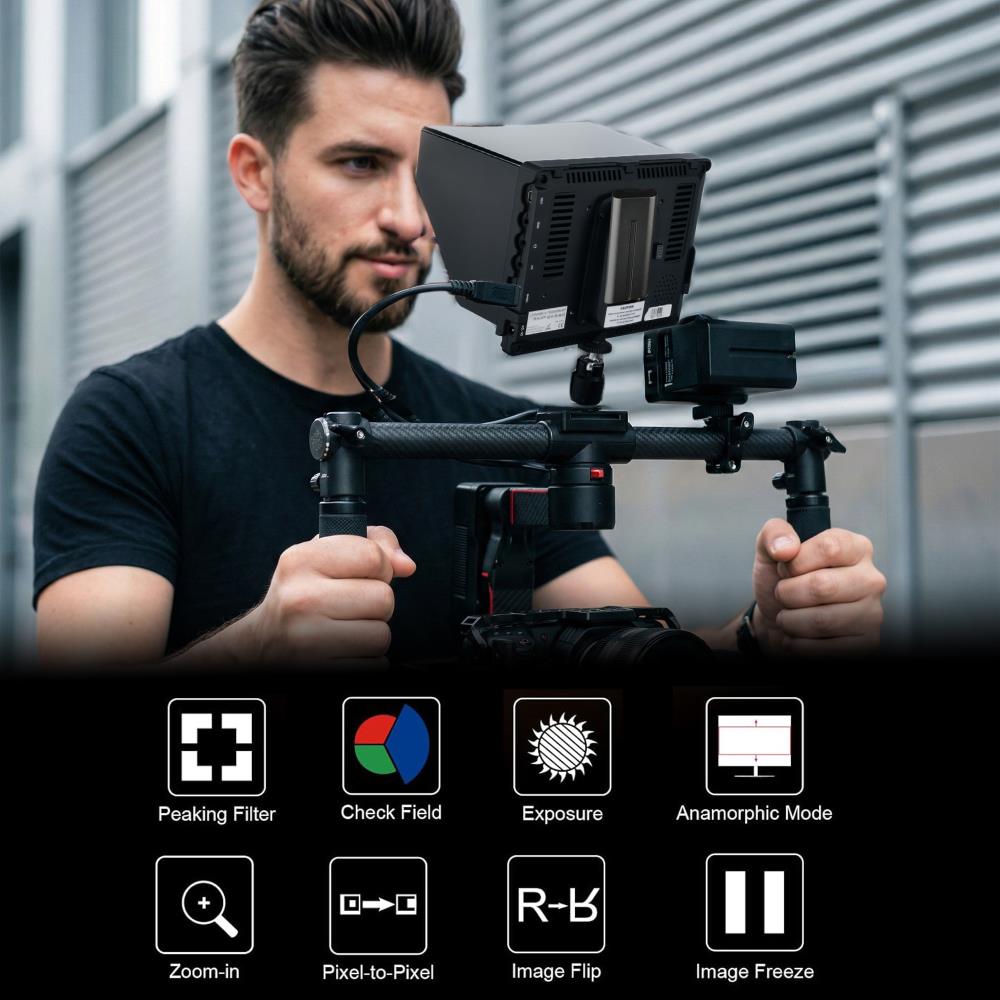

    • Image Controls : Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers

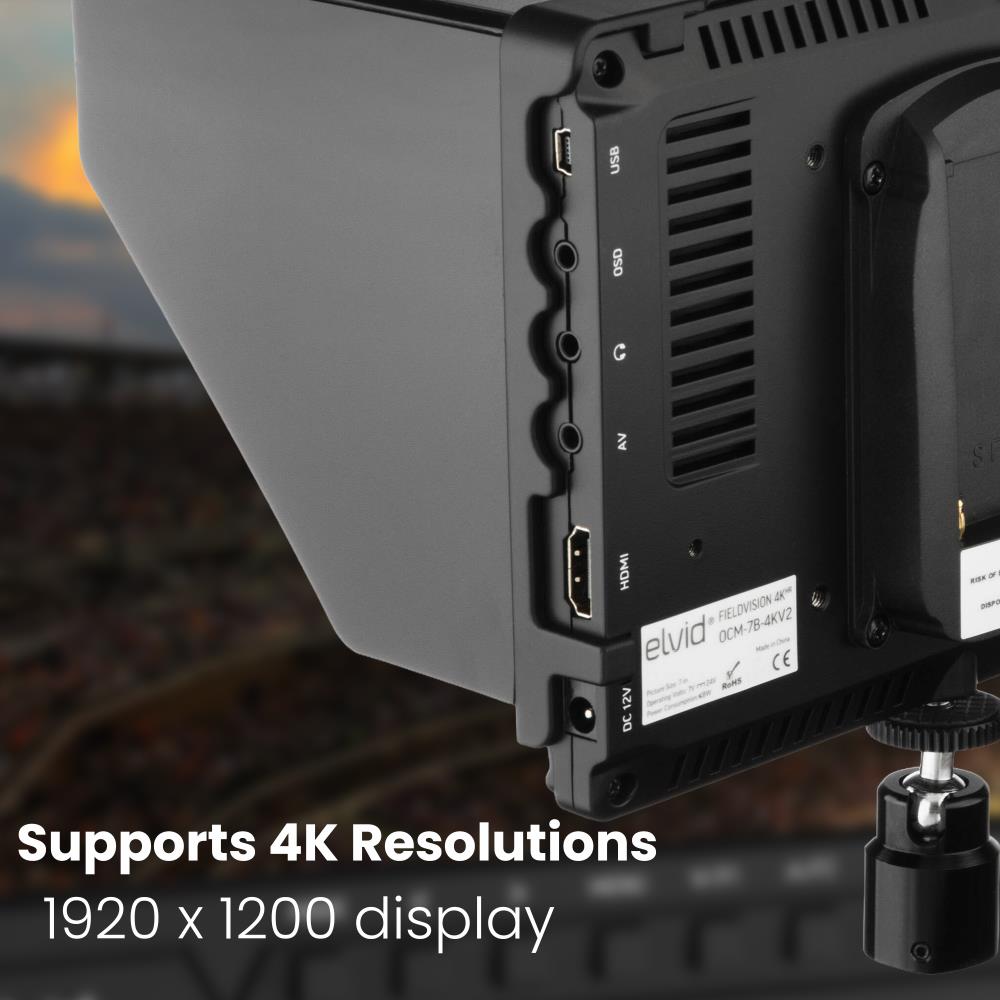

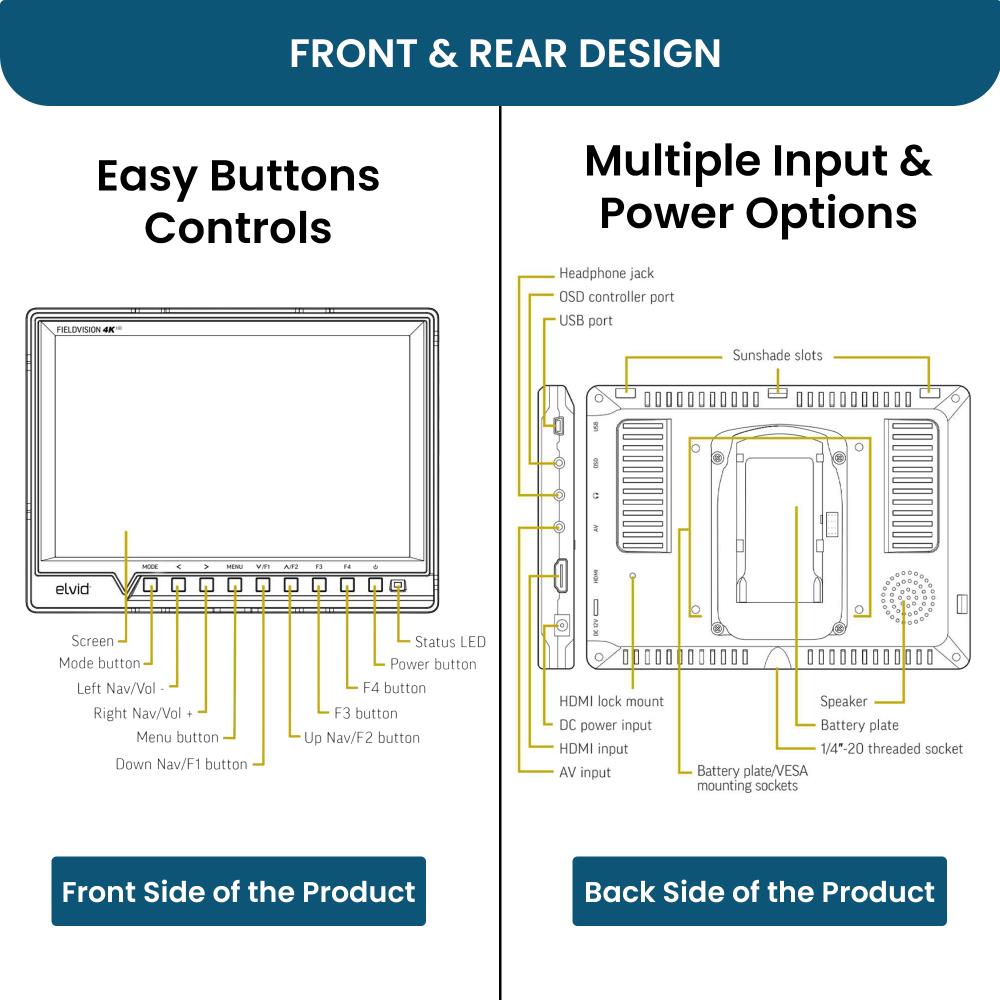

    • Video I/O : 1x HDMI 1.4 Input
    • Video I/O (Composite) : 1x 1/8" / 3.5 mm TRRS A/V Input
    • Embedded Audio : HDMI
    • Audio I/O : 2x 1/8" / 3.5 mm Headphone Input/Output
    • Built-In Speaker : Mono
The Elvid FieldVision 4KV2 7" On-Camera Monitor is designed to give photographers and videographers a clear, detailed view of their footage while shooting. Featuring a sharp 1920 x 1200 IPS display with 4K signal support, this monitor helps you check focus, framing, and exposure with confidence. Built with HDMI and composite inputs, essential monitoring tools, and a lightweight design, it’s a practical solution for DSLR, mirrorless, and cinema camera setups both indoors and outdoors.
