Kopul - KODANAOXM2 - Kopul 2-Channel XLR Analog Output Adapter for Dante Network - 2 Balanced Audio Output, PoE, 24-Bit /96 kHz, Plug-and-Play, 2 x XLR-Male & RJ45 Connectors, Rugged ABS Construction, Ideal for Audio Systems

Kopul - KODANAOXM2

Kopul - KODANAOXM2
Kopul 2-Channel XLR Analog Output Adapter for Dante Network - 2 Balanced Audio Output, PoE, 24-Bit /96 kHz, Plug-and-Play, 2 x XLR-Male & RJ45 Connectors, Rugged ABS Construction, Ideal for Audio Systems

(0)REVIEW Add Your Review | Email a Friend Free Shipping in the Continental USA.

List Price : $153.98 You Save :$-26.47 Unit Price : $180.45

5% OFF

Sitewide Use Coupon CodeSWS866

Add To Cart Wishlist

SKU : KODANAOXM2 Availability : In stock

Product Summury
Model	KODANAOXM2
UPC	847628550520
Brand	Kopul
Weight	0.35 lbs
Height	1.1
Width	1.1
Condition	New

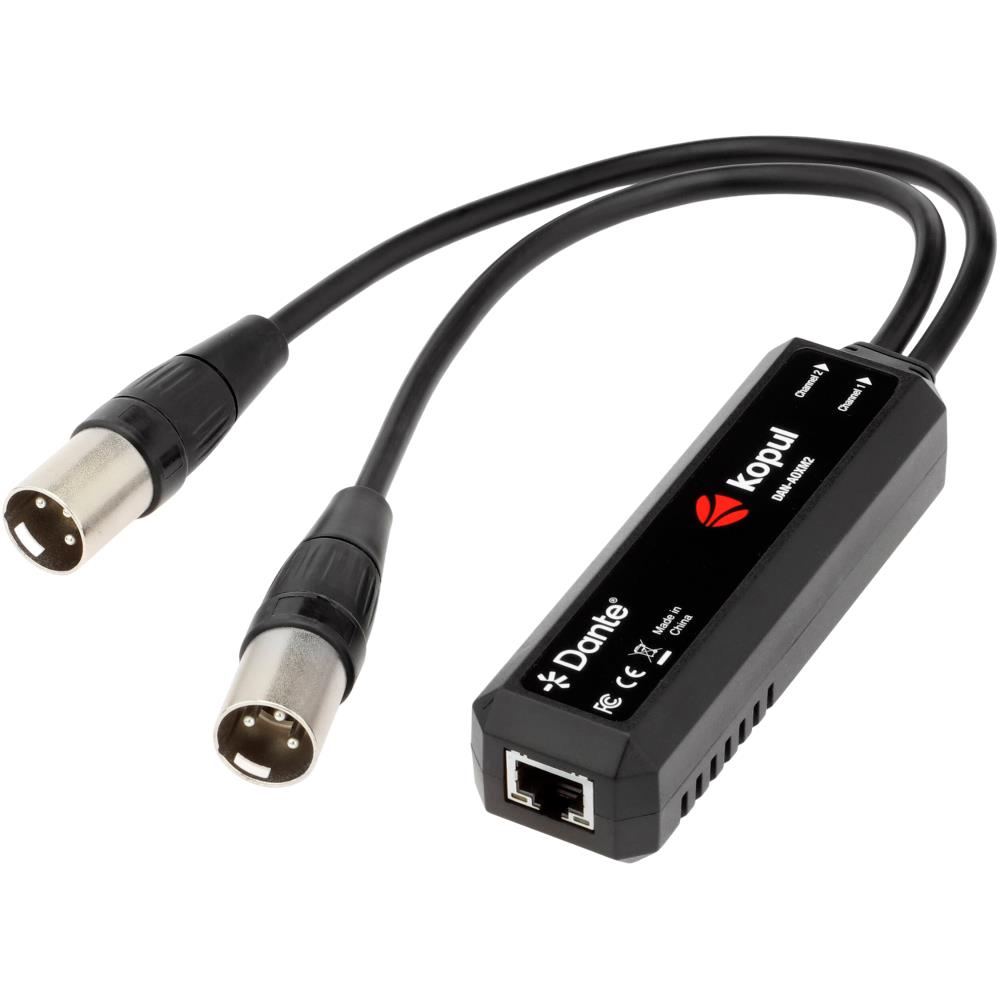

Kopul Two-Channel XLR Analog Output Adapter for Dante Network

The Kopul Two-Channel XLR Analog Output Adapter is a cost-effective solution for integrating your analog audio gear into a Dante network. This adapter converts Dante digital audio to high-quality, balanced analog signals, allowing you to send audio to analog mixing boards, power amplifiers, or powered speakers with ease.

Key Features:

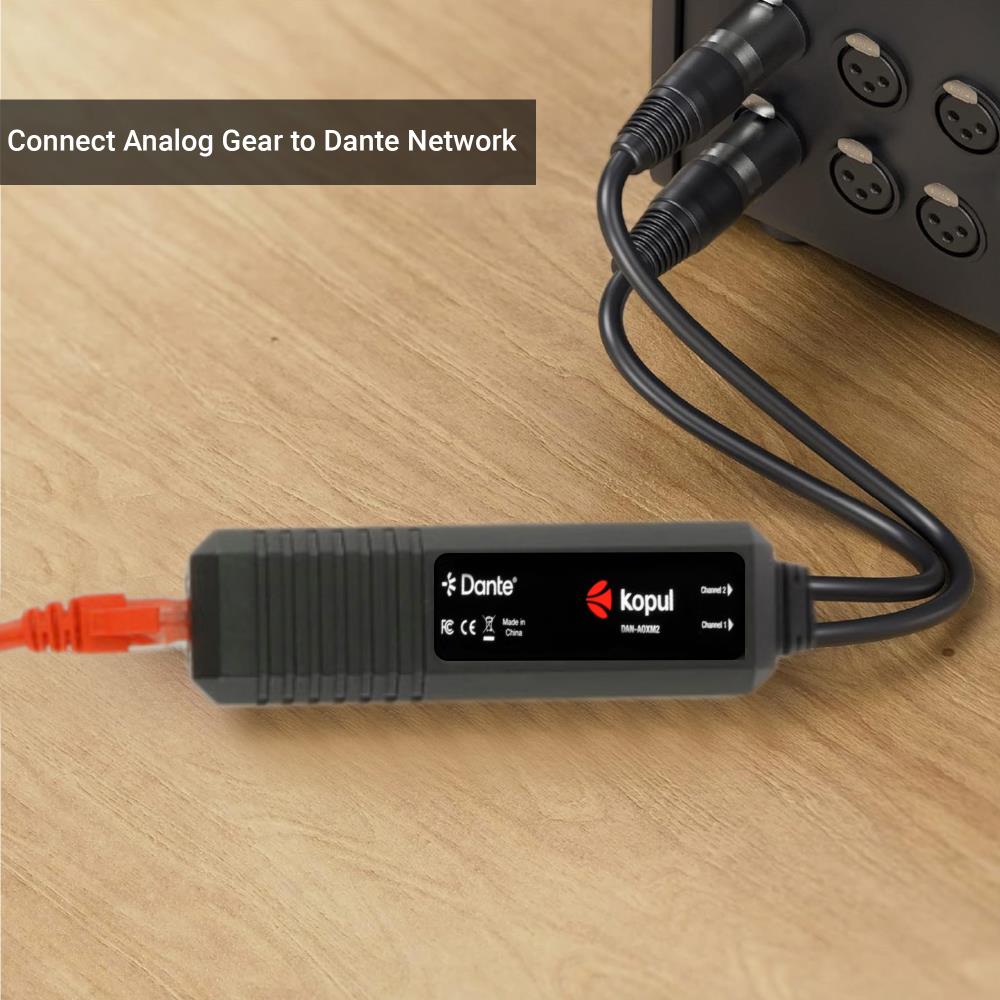

Connect Analog Gear to Dante Network: Seamlessly integrate analog equipment into your Dante audio system.

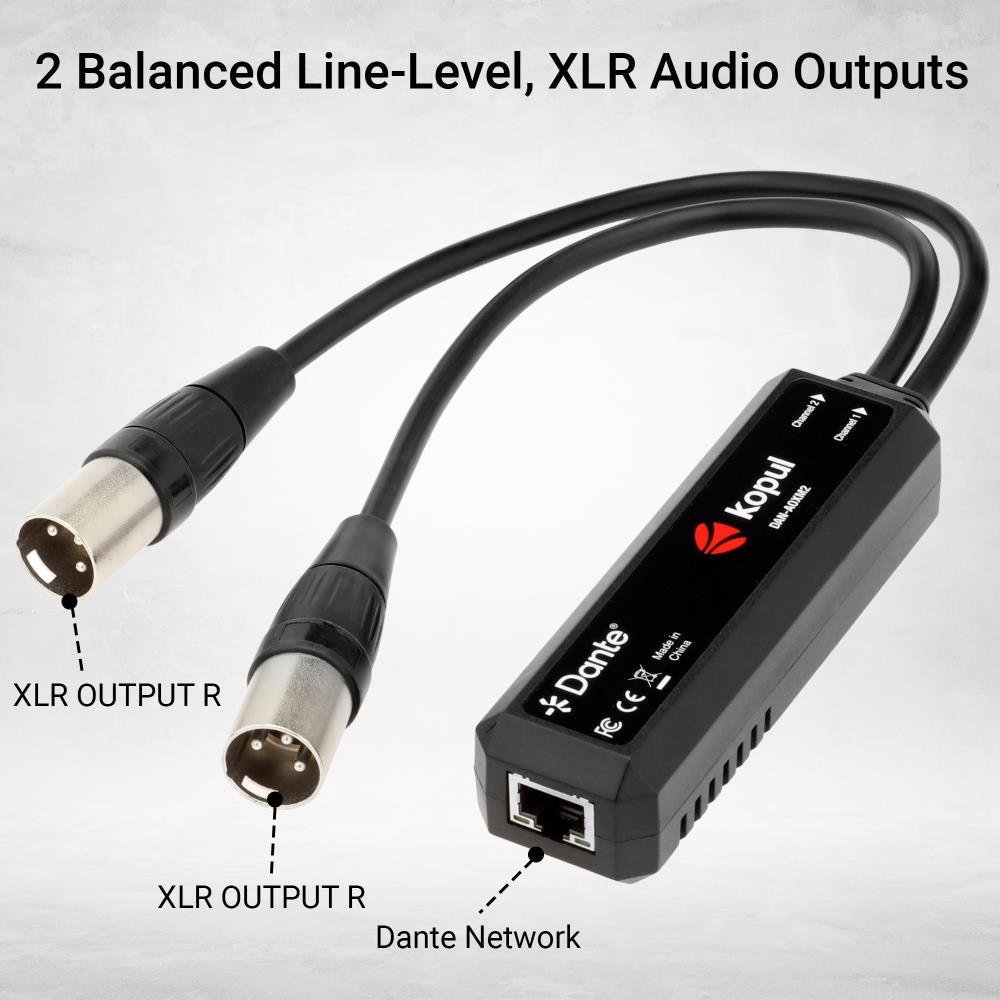

2 Balanced Line-Level XLR Audio Outputs: Provides two XLR outputs for reliable, high-quality audio transmission.
Plug-and-Play Operation: Automatically discovered by the Dante network, making setup quick and easy.

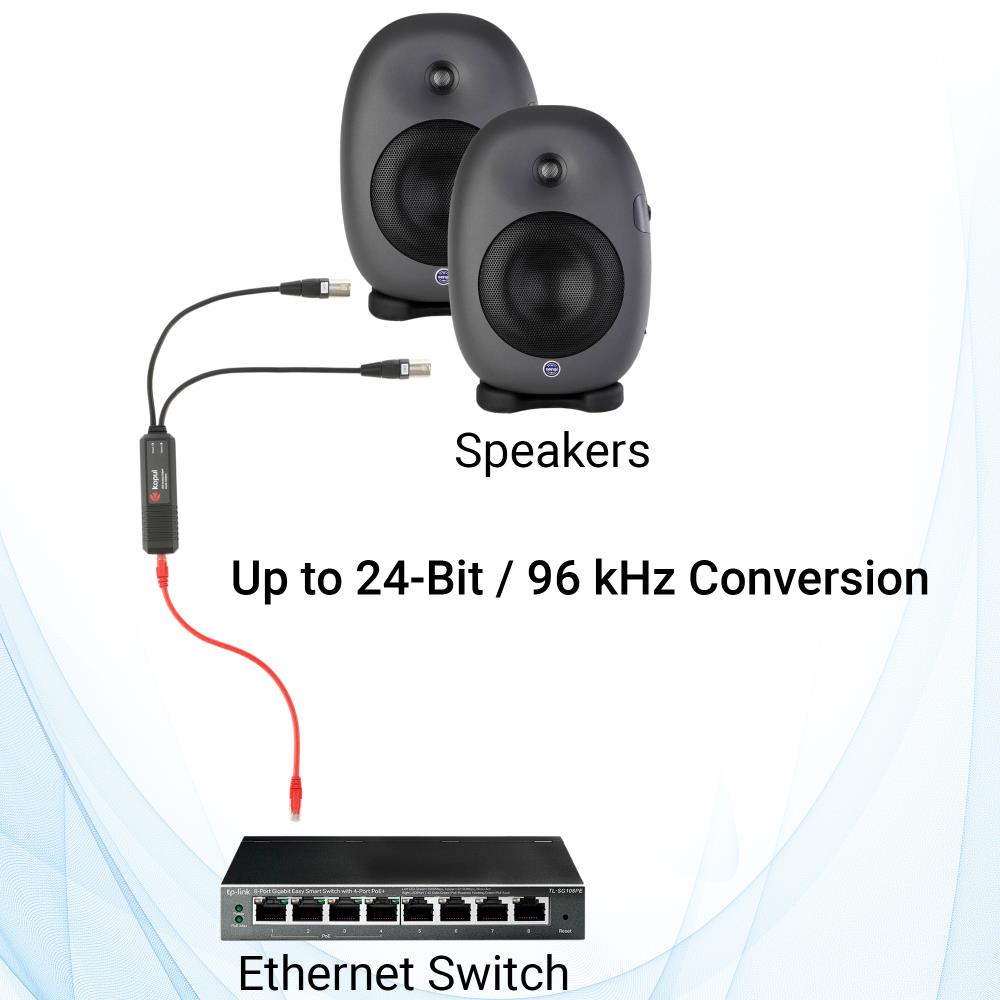

Up to 24-Bit / 96 kHz Conversion: Ensures high-fidelity audio with superior clarity and dynamic range.
Dante Audio over IP & AES67 RTP Formats: Compatible with both Dante and AES67 networks for versatile integration.
Configurable Gain and Attenuation: Customize audio levels to suit your specific gear and environment.
Works with Dante Domain Manager (DDM): Fully compatible for network monitoring and management.
PoE Powered: Powered via Power over Ethernet for a streamlined setup without extra power cables.
Rugged ABS Construction: Built to endure the rigors of touring and live performance environments.

The Kopul Two-Channel XLR Analog Output Adapter offers an easy, reliable way to incorporate analog equipment into your Dante audio network, providing professional-grade audio with minimal setup.

Specifications:

Maximum Signal Level: +18 dBu, Balanced
Output Gain: -6 dBu
Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
Impedance: 150 Ohms (Balanced), 75 Ohms (Unbalanced)

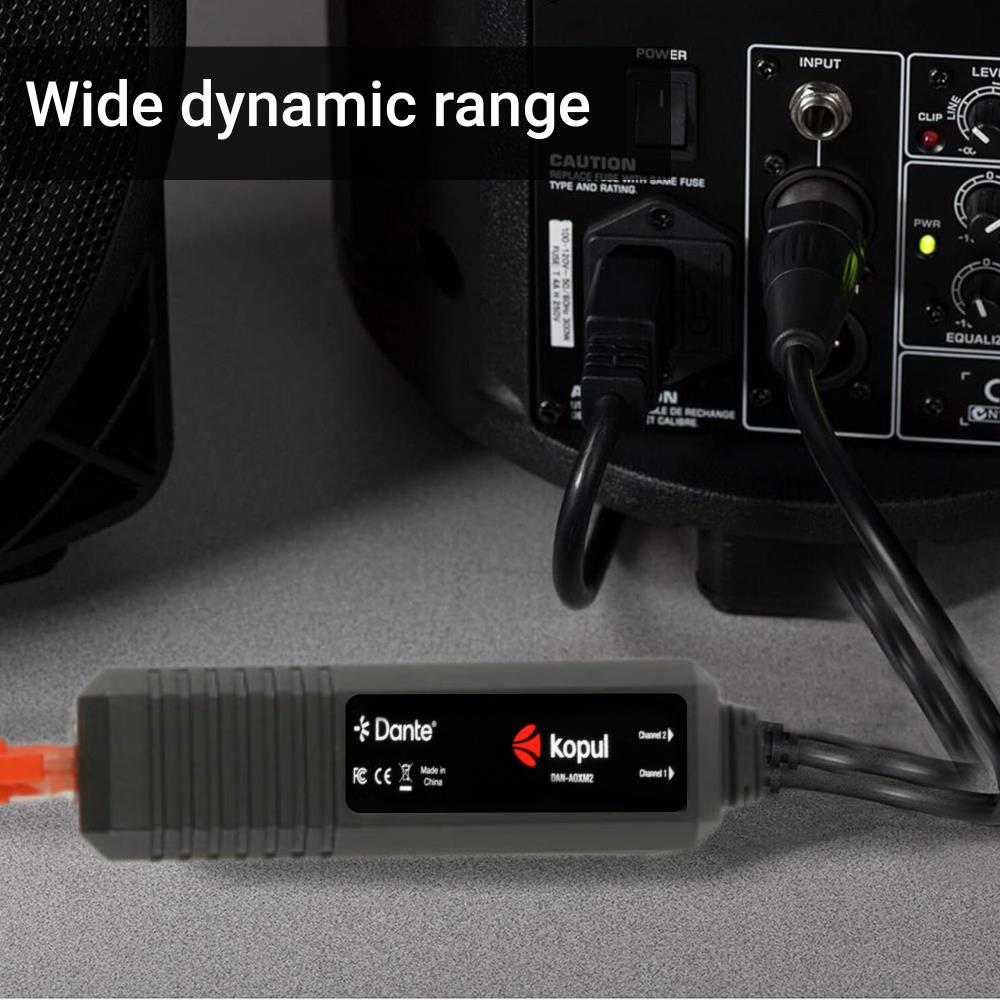

Dynamic Range: >100 dB

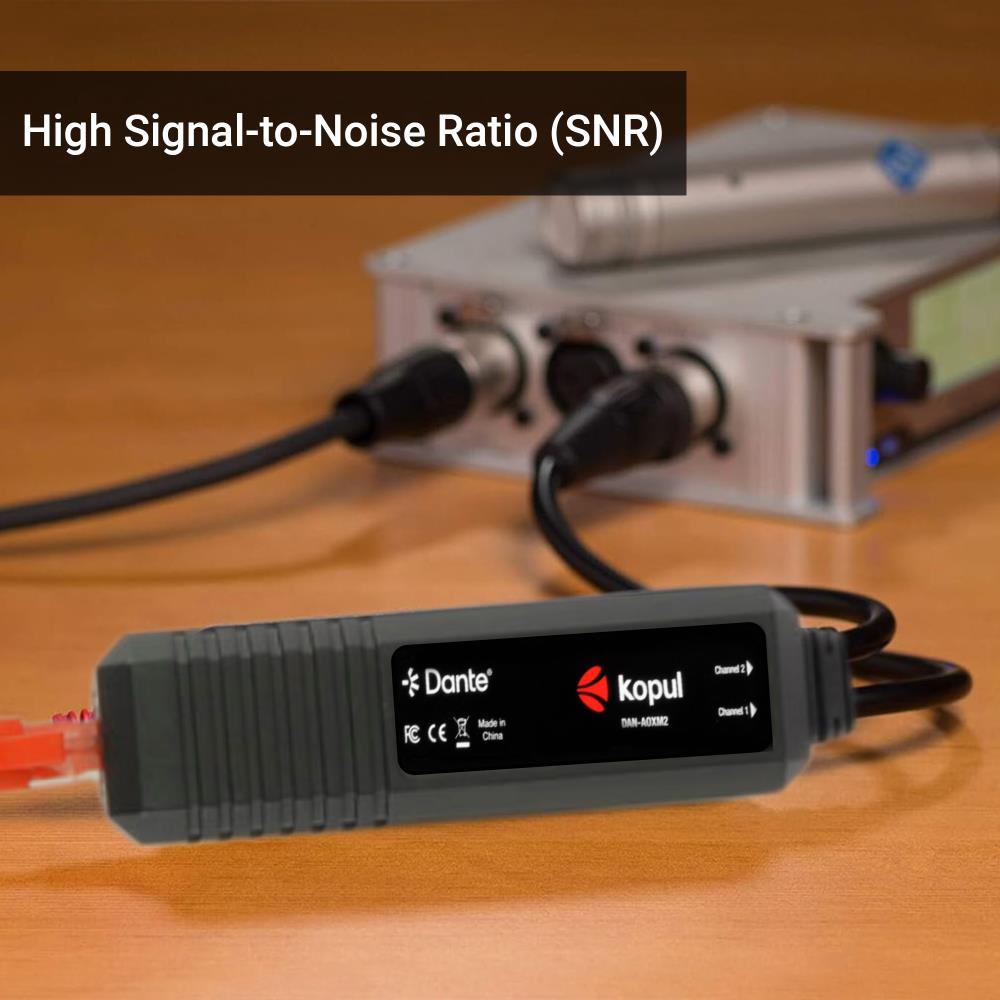

Signal-to-Noise Ratio: >100 dB
Total Harmonic Distortion: <0.01% at +4 dBu
Connectors: RJ45, 2 x XLR M
Power: 802.3af PoE
Power Consumption: 2.6 W (Max)
Sample Rates: 44.1, 48, 96 kHz
Bit Depth: 24-Bit
Network Transport Protocol: Dante Audio over IP, AES67 RTP
Construction: ABS

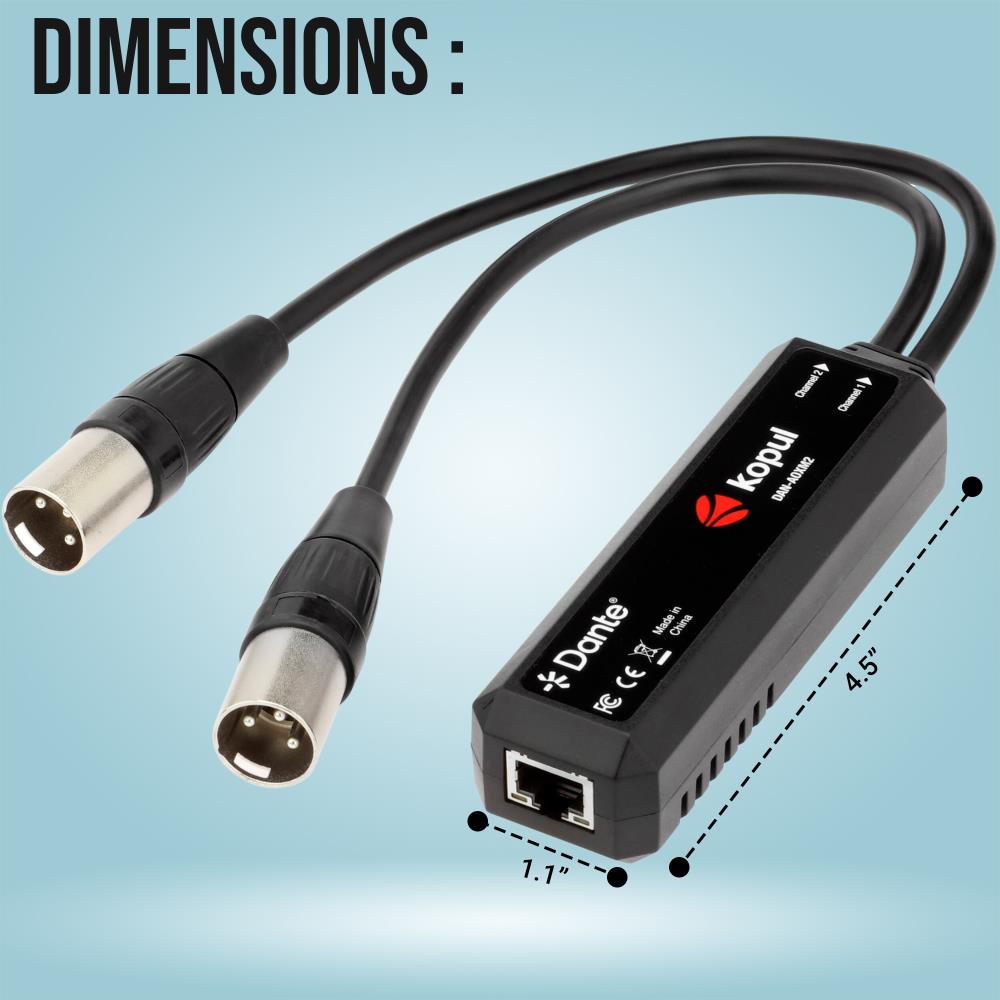

Dimensions: 4.5 × 1.1 × 1.1" / 11.4 × 2.8 × 2.8 cm
Weight: 5.6 oz / 159 g
Package Weight: 0.46 lb
Box Dimensions (LxWxH): 7.7 x 3.7 x 1.4"

The Kopul Two-Channel XLR Analog Output Adapter for Dante Network enables you to incorporate analog audio gear you already own into your Dante network. With plug-and-play operation, the Kopul Output Adapter is automatically discovered by the network and ready to use once connected, making it easy to send highly detailed and clock-accurate audio to an analog mixing board, power amplifier, or powered speakers over Dante. The Kopul Output Adapter connects to the network via its RJ45 Ethernet port and outputs two balanced line-level analog audio signals via its two, 3-pin XLR-M connectors. It delivers two channels of high-quality audio with up to 24-bit / 96 kHz D/A conversion, high SNR, low THD, and a wide frequency response of 20 Hz to 20 kHz. The Kopul Output Adapter is PoE powered. It supports Dante Audio over IP and AES67 RTP transport formats and is compatible with Dante Domain Manager (DDM).
