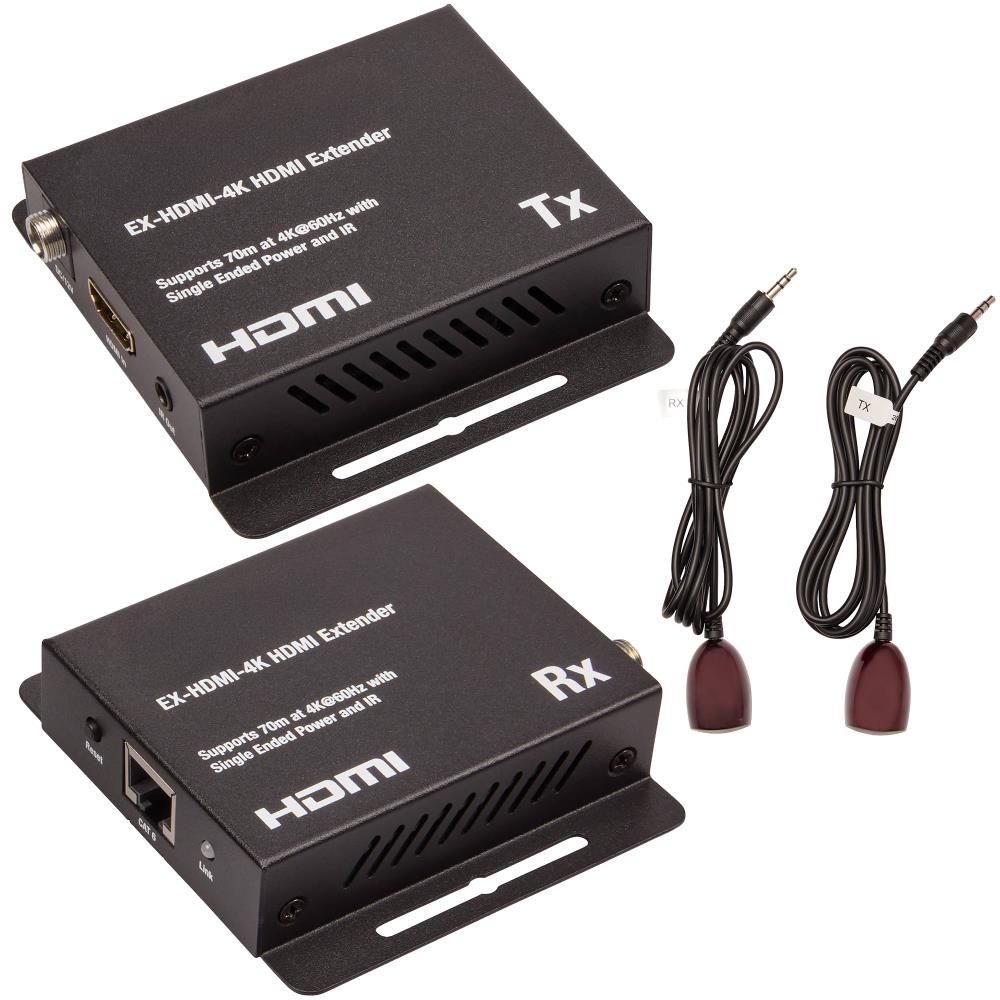

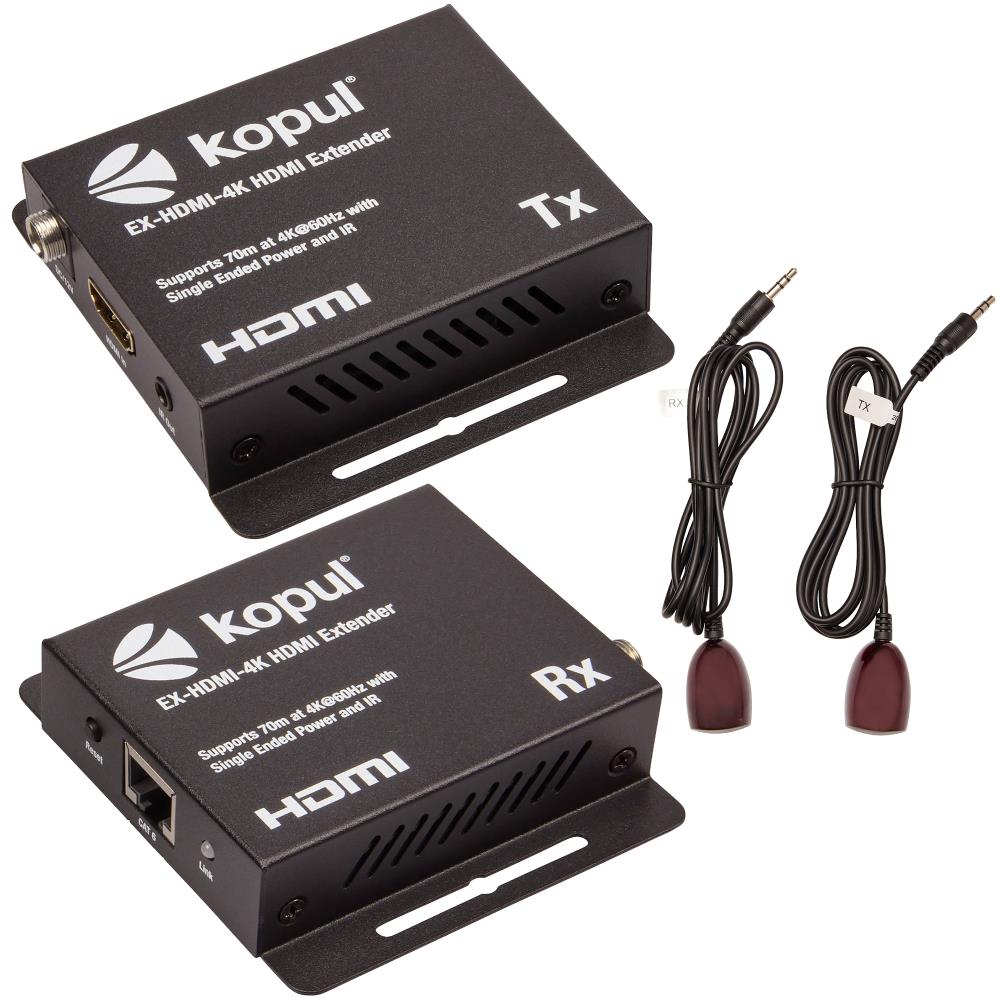

The EX-HDMI-4K from Kopul is an affordable and reliable way to extend HDMI signals without using long, expensive HDMI cables. This transmitter and receiver kit supports 4K60 video, HDR10/HLG formats, uncompressed audio, and remote IR control. Plug-and-play setup and rugged metal housing make it perfect for transport and long-term use.

Key Features:

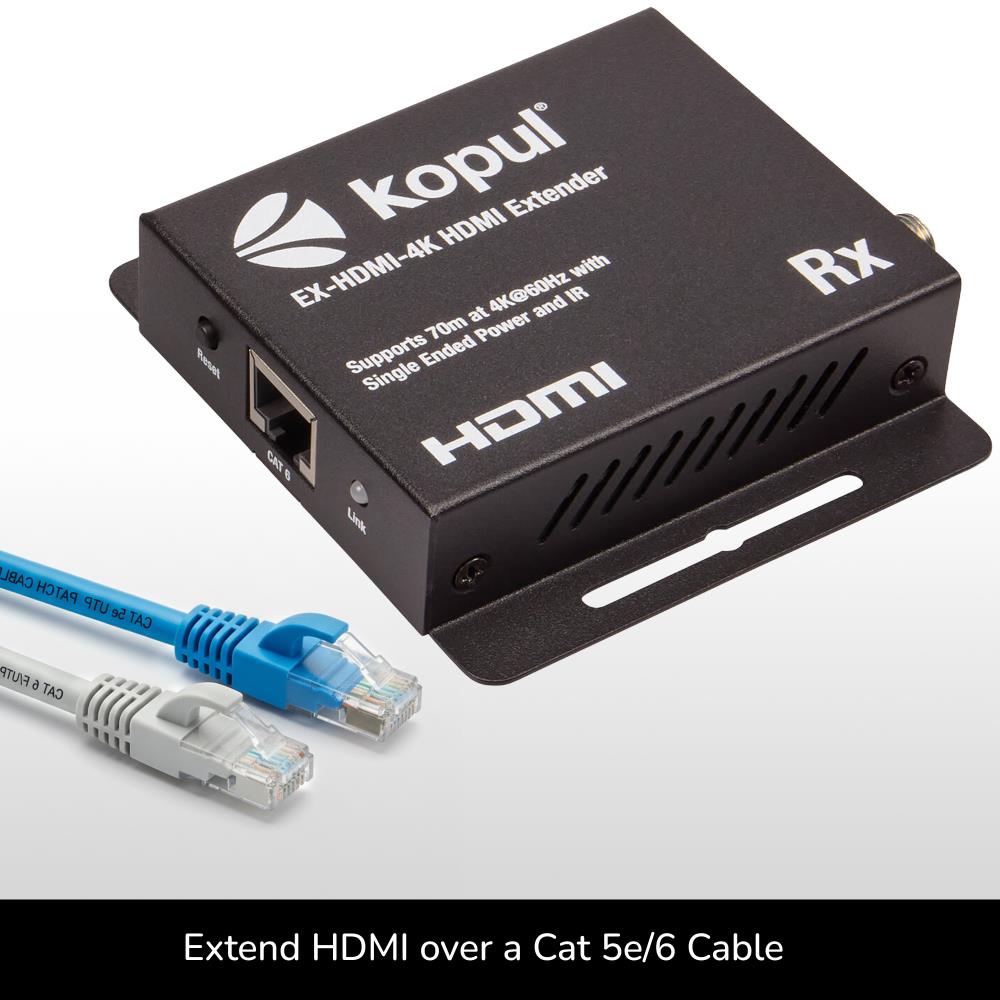

• Extend HDMI over Cat 5e/6: Send HDMI signals up to 230' using cost-effective Ethernet cables instead of heavy HDMI cables.
• 4K60 & HDR Support: Supports UHD video up to 4096x2160 at 60 Hz, HDR10/HLG, HDCP 2.2/1.4 for vibrant, high-quality images.
• IR Input and Blaster Cables: Control devices like projectors, DVD, or Blu-ray players remotely up to 230' away.

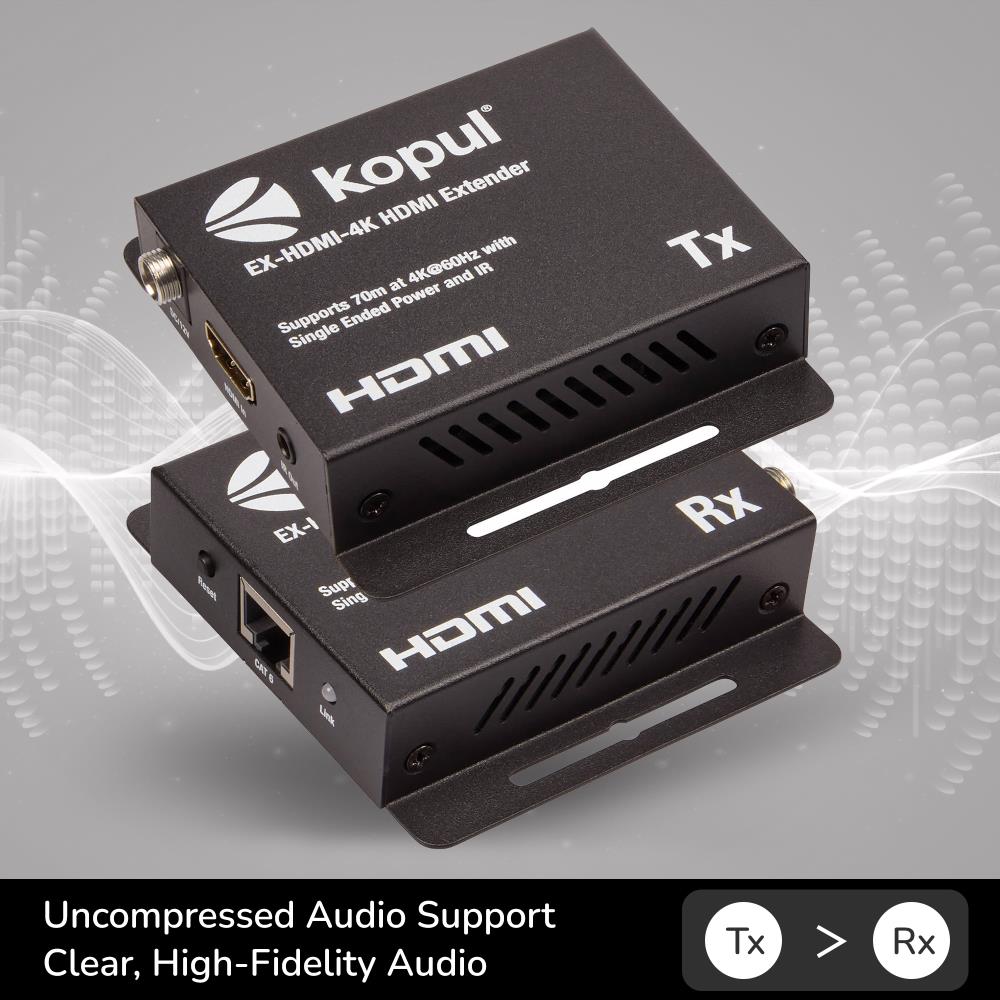

• Uncompressed Audio & DTS/Dolby: Maintains full-quality audio for immersive surround sound over long distances.

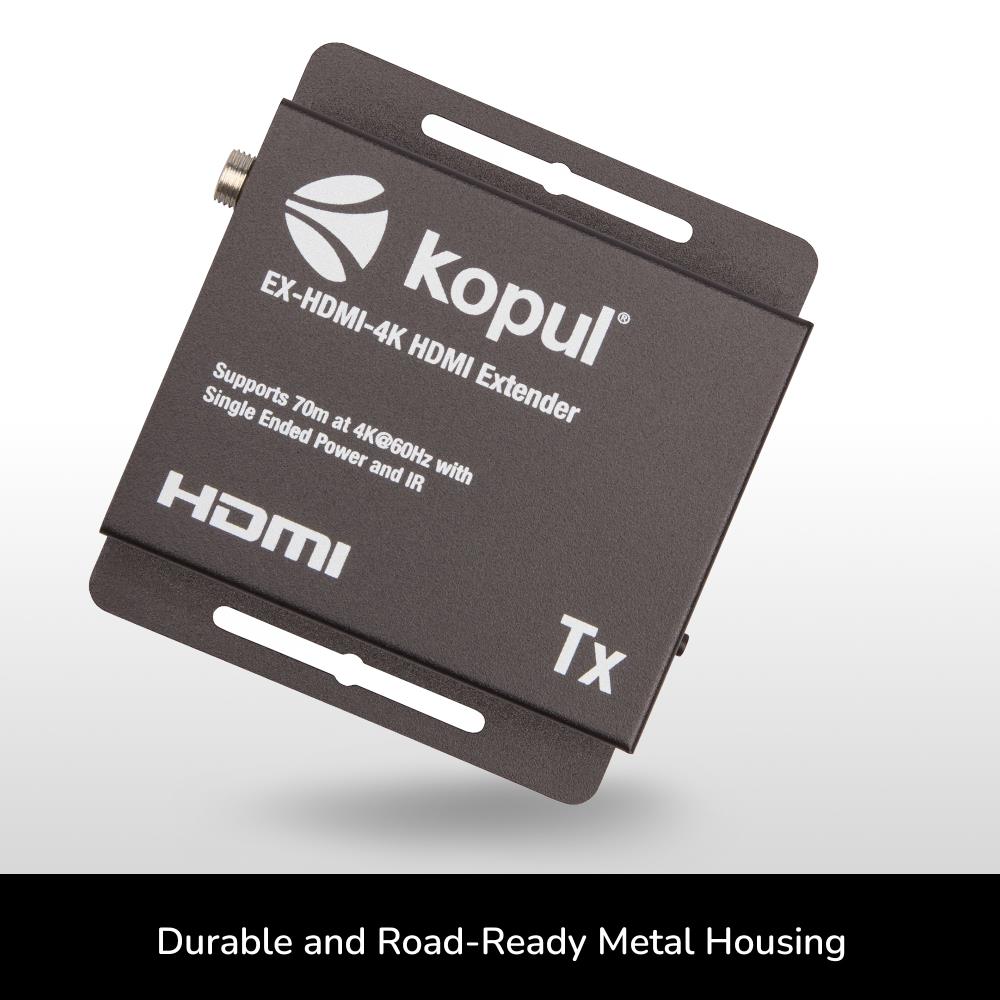

• Durable Metal Housing: Road-ready metal construction protects units during transport and live events.

Setup Instructions:

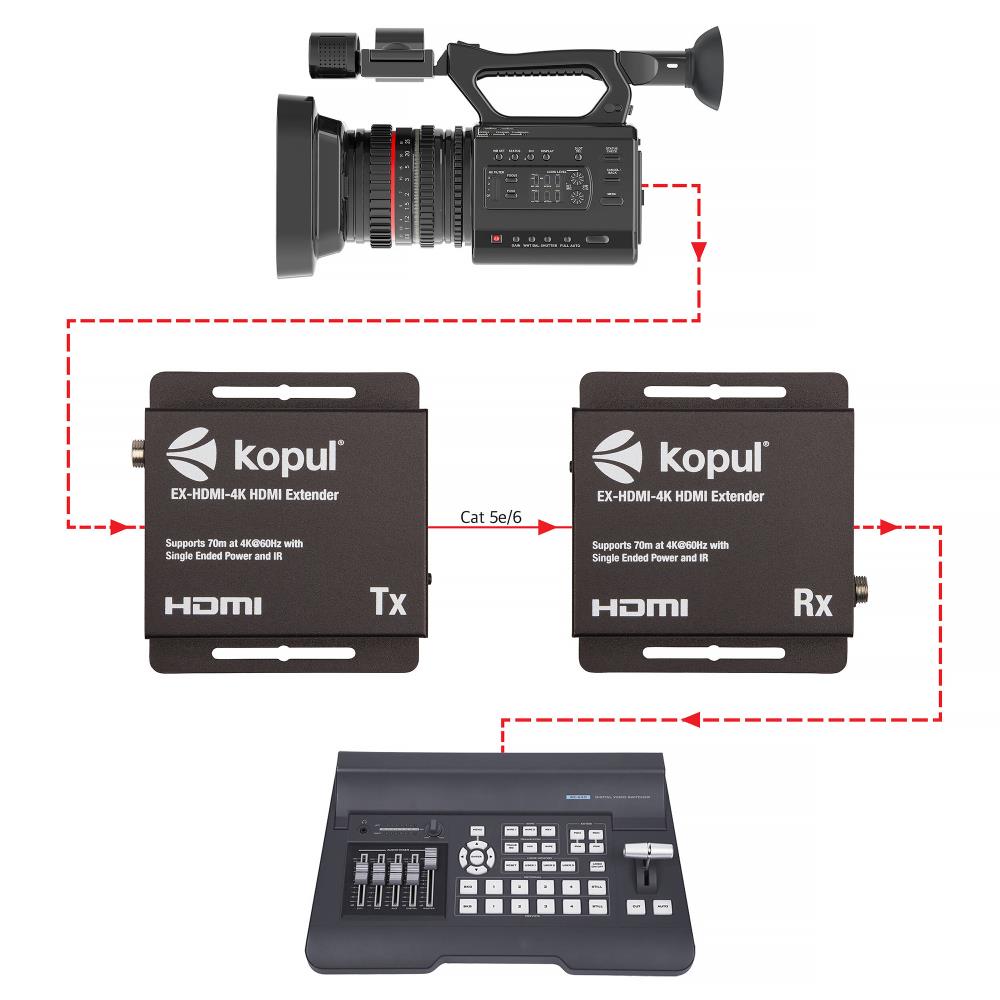

1. Connect the transmitter HDMI input to your media source and receiver HDMI output to your display.
2. Run a Cat 5e/6 cable between the transmitter and receiver, up to 230'.
3. Connect power to one unit; PoE powers the other unit automatically.
4. Connect IR transmitter and receiver cables for remote control.
5. Verify display input and enjoy high-quality 4K video and audio transmission.

Product Specifications:

• Model: EX-HDMI-4K
• Transmitter Inputs: 1 x HDMI Female, 1 x 3.5mm IR Output, 1 x Barrel 12V DC Power Input

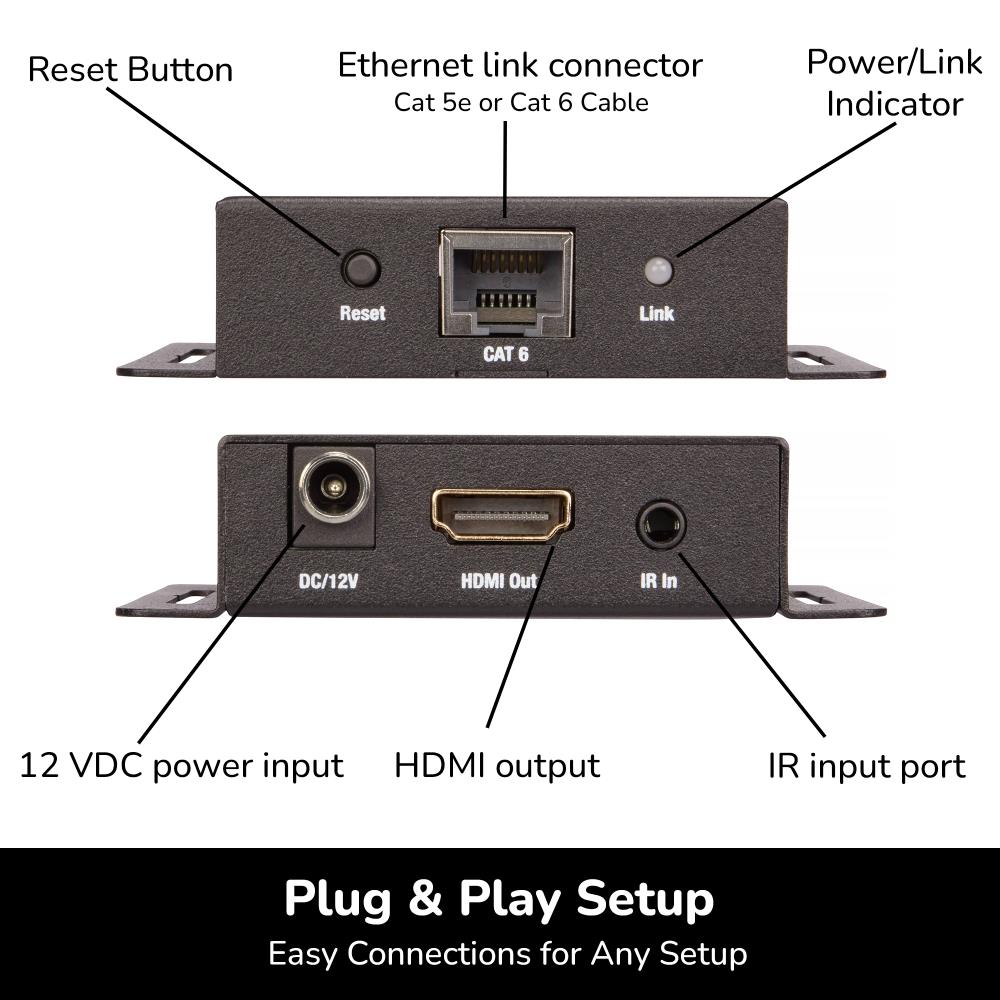

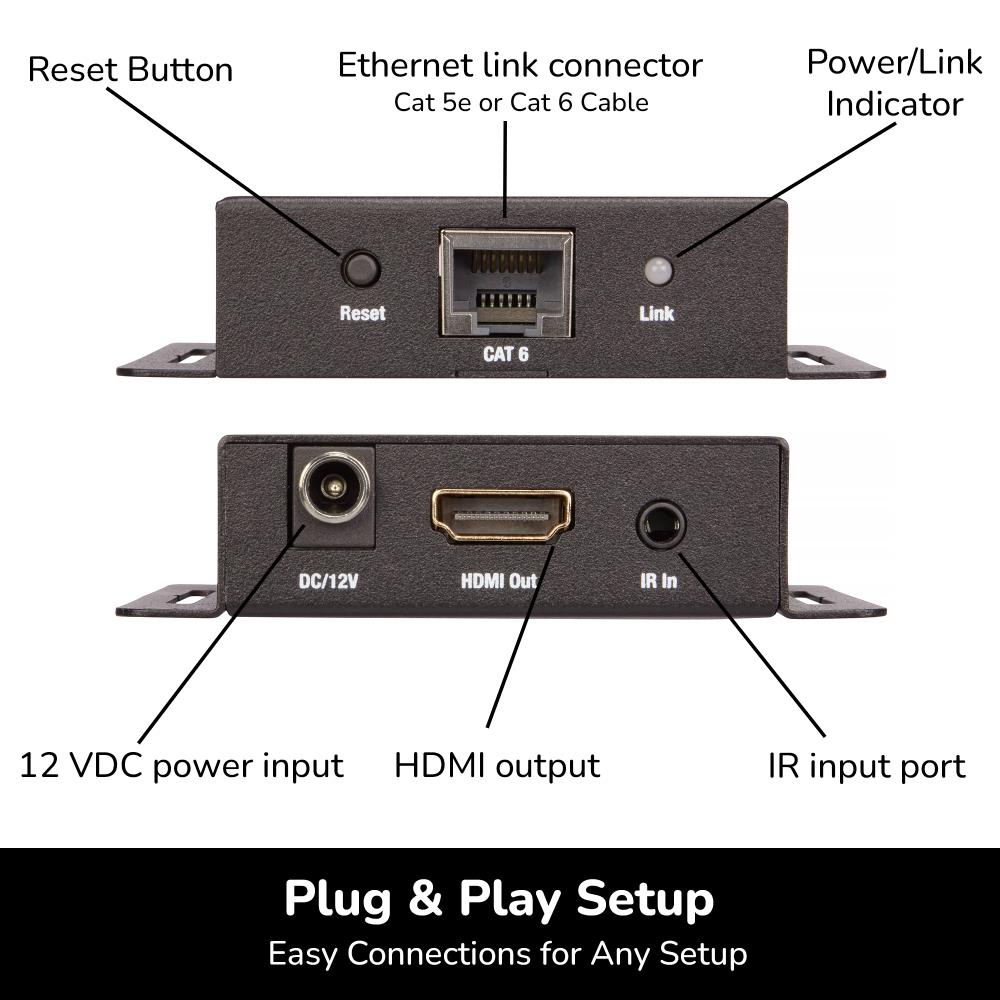

• Receiver Outputs: 1 x HDMI Female, 1 x 3.5mm IR Input, 1 x Barrel 12V DC Power Input
• Supported Standards: HDCP 1.4/2.2, HDR10, HLG (Hybrid Log Gamma)
• Maximum Transmission Distance: 230' / 70.1 m
• Video Formats Supported: 4K60 (4096 x 2160 @ 60Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Audio Formats Supported: Uncompressed Digital Audio, DTS, Dolby Digital
• Cable Type: Cat 5e/6 Ethernet
• Latency: None
• Durable Housing Material: Metal
• Dimensions (Transmitter & Receiver): 3 x 2.4 x 0.7" / 76.2 x 61 x 17.8 mm
• Weight (Transmitter & Receiver): 4.2 oz / 119 g each
• Power: Transmitter: 12V DC, 1 A (Barrel); Receiver: 12V DC, 1 A (Barrel); Power Consumption: 1.3W / 1.6W
• Operating Conditions: 32–122°F / 0–50°C, 5–90% Humidity
• Storage Conditions: 32–122°F / 0–50°C, 5–90% Humidity
• IR Control: Includes IR input and blaster cables for remote device
