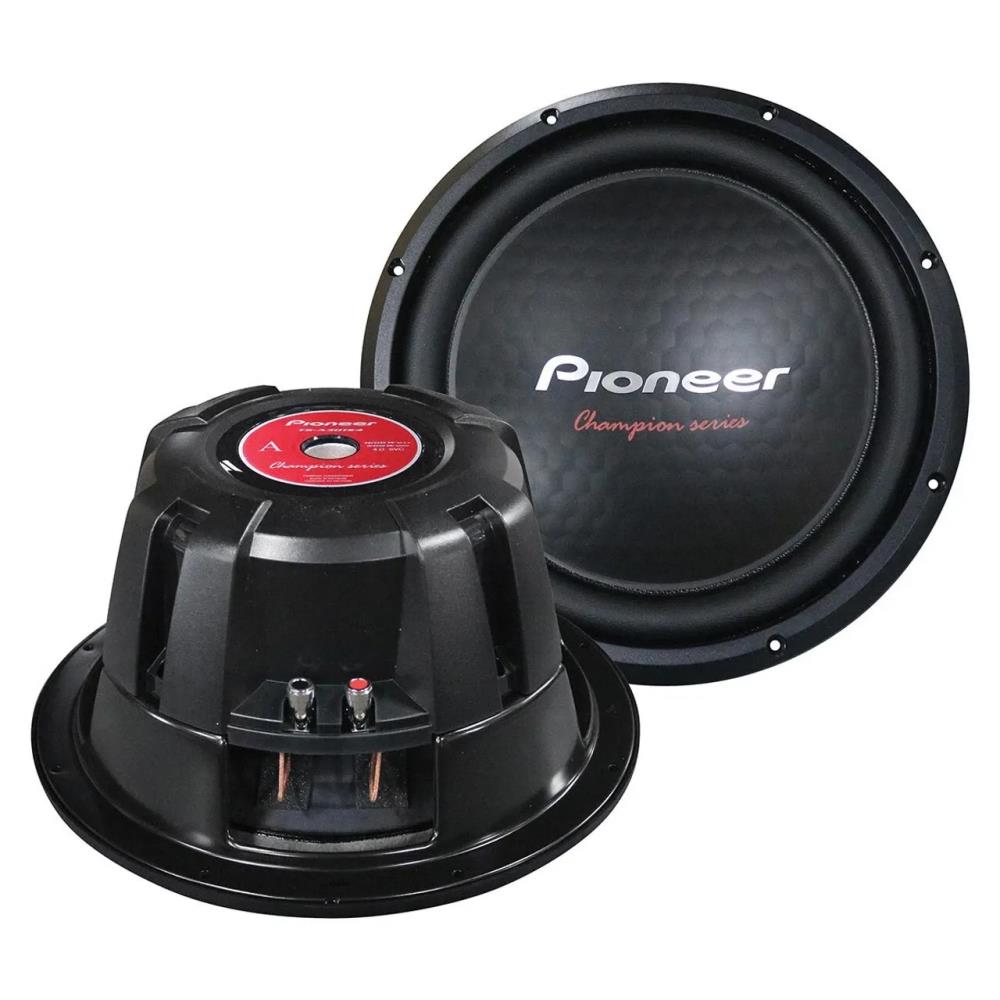

Pioneer - TSA301S4 - Pioneer TS-A301S4 12" Champion Series Subwoofer – 1600W Peak, 500W RMS, 4 Ohm SVC, Honeycomb IMPP Cone, 92dB Sensitivity, 90oz Magnet

Pioneer - TSA301S4

Pioneer - TSA301S4
Pioneer TS-A301S4 12" Champion Series Subwoofer – 1600W Peak, 500W RMS, 4 Ohm SVC, Honeycomb IMPP Cone, 92dB Sensitivity, 90oz Magnet

(0)REVIEW Add Your Review | Email a Friend These items ship free with qualifying orders over $25.

List Price : $0 You Save :$0 Unit Price : $0

5% OFF

Sitewide Use Coupon CodeSWS866

Add To Cart Wishlist

SKU : TSA301S4 Availability : In stock

Product Summury
Model	TSA301S4
UPC	0884938496056
Brand	Pioneer
Weight	14.4 lbs
Height	6.12
Width	12.75
Condition	New

The Pioneer TS-A301S4 Champion Series 12" subwoofer evolves from Pioneer’s award-winning SPL Champion Edition legacy, delivering deep, powerful bass with improved efficiency and sensitivity. A redesigned large motor assembly and reinforced basket structure help reduce vibration while maintaining strength, resulting in cleaner low-frequency output and better overall sound quality.

Built for high output with reduced distortion, this subwoofer features an advanced 2-piece cone design using a highly rigid Honeycomb IMPP™ composite cone plus a rigid drive cone for strong performance during high excursion. With 500W RMS continuous power handling and 1,600W peak power, a single 4-ohm voice coil, and a vented pole yoke for enhanced cooling, the TS-A301S4 is a dependable upgrade for serious car audio bass performance. For a virtual listening demo, download the free Pioneer CarSoundFit app.

Key Features

12" Champion Series subwoofer developed from Pioneer’s SPL Champion Edition heritage for deep, powerful bass
Power handling rated at 500W RMS continuous and 1,600W peak for high output performance
Single voice coil (SVC) 4-ohm design for efficient power transfer and broad amplifier compatibility
Honeycomb Composite Injection Molded Polypropylene (IMPP) cone construction for rigidity and reduced distortion
Advanced 2-piece cone design adds strength and supports linear motion during high excursion playback
Dual-layer fiber reinforced elastic polymer surround for durability and controlled cone movement
Oversized 90 oz magnet with vented pole yoke helps improve cooling and power handling
Reinforced basket structure designed to reduce vibration and improve sound quality
Pioneer CarSoundFit app available for a virtual in-car listening demonstration (free download)

Item Details

Brand: Pioneer
Model: TS-A301S4
Series: Champion Series
Speaker Size: 12"
Voice Coil: Single Voice Coil (SVC)
Impedance: 4 Ohms
Power Handling (RMS): 500W
Power Handling (Peak): 1,600W
Frequency Response: 20Hz to 1.6kHz
Sensitivity: 92 dB
Top-Mount Depth: 6.125"
Magnet Structure: 90 oz Ferrite Magnet
Cone Material: Honeycomb IMPP™ Composite with 2-Piece Cone Design
Surround Material: Dual-Layer Fiber Reinforced Elastic Polymer
Unit Quantity: 1 Subwoofer (Priced Per Subwoofer)

The Pioneer TS-A301S4 12-inch Champion Series subwoofer builds on the legacy of Pioneer’s award-winning SPL Champion Edition lineup, delivering deep, powerful bass with improved efficiency and sensitivity. Featuring a re-engineered large motor assembly and reinforced basket structure, this subwoofer is designed to reduce vibration while maintaining structural strength for clean, accurate low-frequency performance. Engineered for high output and reliability, the advanced two-piece cone design combines a highly rigid Honeycomb IMPP™ composite cone with a durable drive cone to minimize distortion during high excursion. With 500 watts RMS power handling and 1,600 watts peak capability, this single 4-ohm voice coil subwoofer is ideal for enthusiasts seeking impactful bass and precise sound reproduction. Experience the difference with Pioneer’s CarSoundFit app, a virtual in-car audio simulator available for free download.
